Netsense System
Overview
Netsense is a temperature monitoring system. One sensing unit can support up to four temperature probes. Acquired temperature data from probes is sent to the server, www.mmnetcenter.com, through the Internet.
By clicking onto www.mmnetcenter.com users can see their data from anywhere with a web browser. Our unique and user-friendly web application gives users ability to get their data in an easy to read graph, download raw data files, and set the temperature range for each probe. Our system will send email or SMS alert to users if the temperature is out of range.
Applications:
- Cold room / Regrigerator
- Server room
- Hotel
- Hostpital / Pharmaceutical
- Warehouse
- Museum
- Aquarium
Features
- Web based application on www.mmnetcenter.com, no software installation
- Email and SMS alert
- Downloadable data stored on www.mmnetcenter.com
- Digital probe, zero calibration
- No extensive wiring, using existing LAN and the Internet
- Sensing unit setup via web browser
- Optional humidity / pressure sensor
- Supporting both DHCP and static IP
- MM-link port for customized applications, Ex. turning on/off appliances
Specifications
- Ports: LAN x 1, Probe x 4, DC-jack x 1, MM-link x 1
- Dimension: 12.5 x 7 x 2.8 cm
- Weight: 101.5 g.
- Power adapter: 12 VDC / 0.5A, switching
- Probe: digital sensor, range from -50˚C to +120˚C
- Probe resolution: 0.1˚C step
- Accuracy: 0.5˚C from -10˚C to +85˚C
Netsense concept
A big picture of Netsense System.
Photo gallery

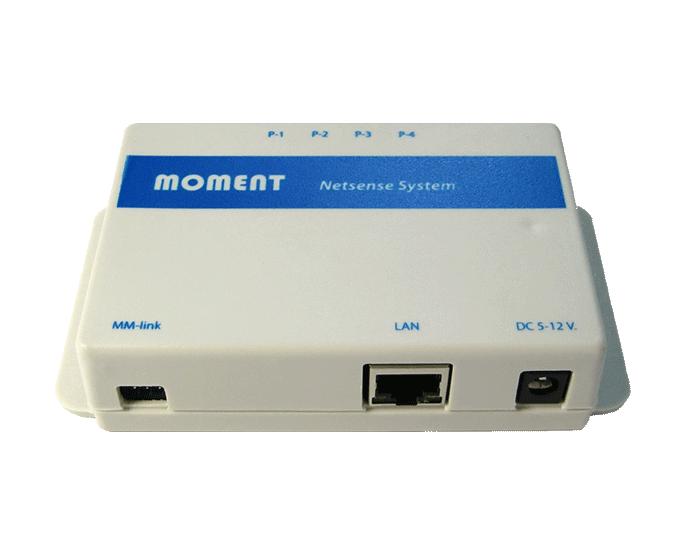

- Front view, side view, and back view

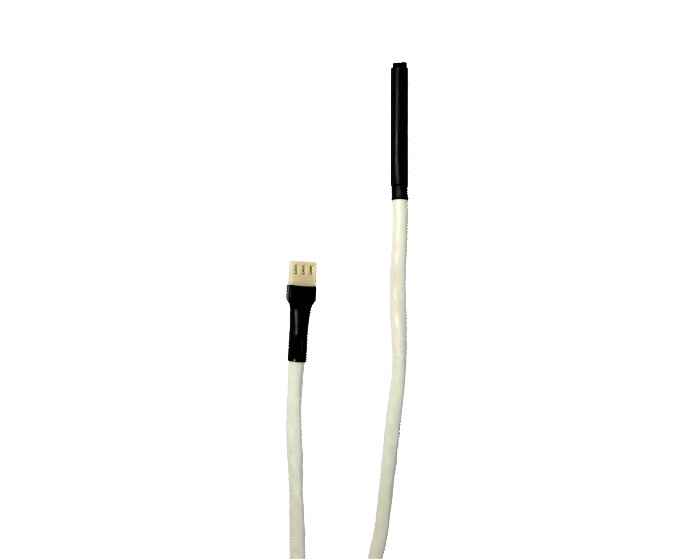

- Probes and cable connection

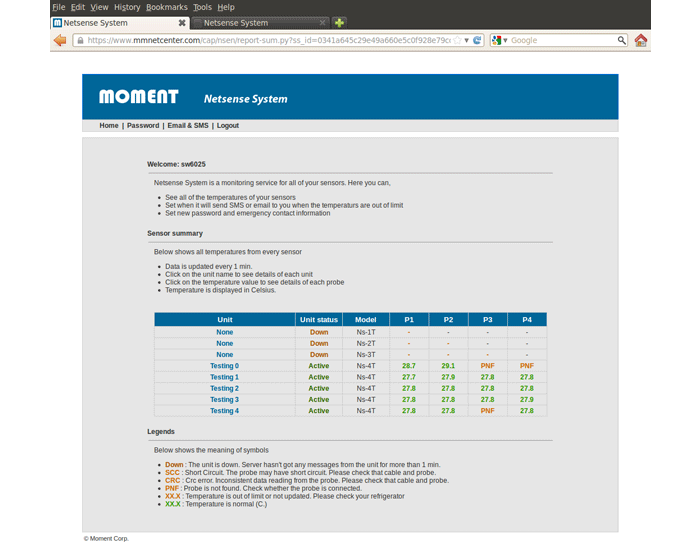

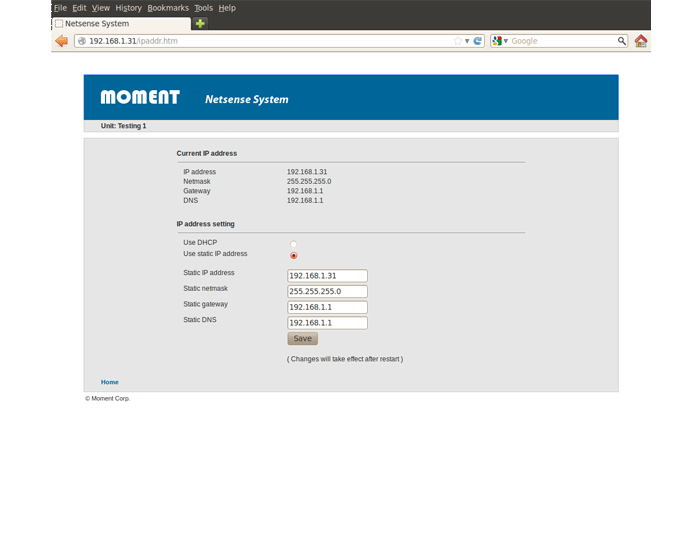

- Screen shots from web based application on www.mmnetcenter.com and Netsense Sensing Unit
